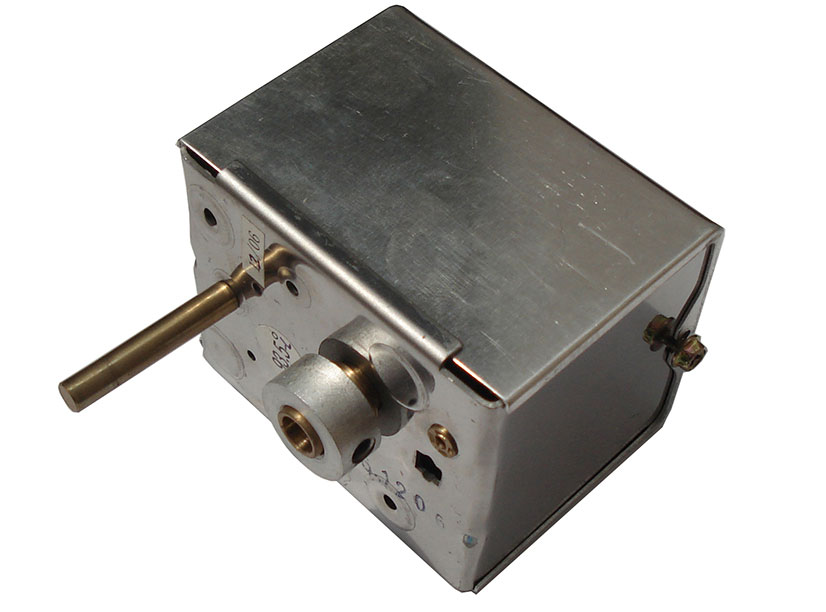

KD10 Spring Return Damper Actuator
• Power supply: 24 VAC, 115 VAC and 230 VAC
• Power consumption: 6 W
• Angle of rotation: 93 degree
• Torque: 0.2 N.m (30 oz.in), both open and close
• Speed: power 30s, spring 7s
• Connection: for shaft Dia. 8 mm (0.312 inch)
• Control: power on, spring return
• Life: 100K cycles

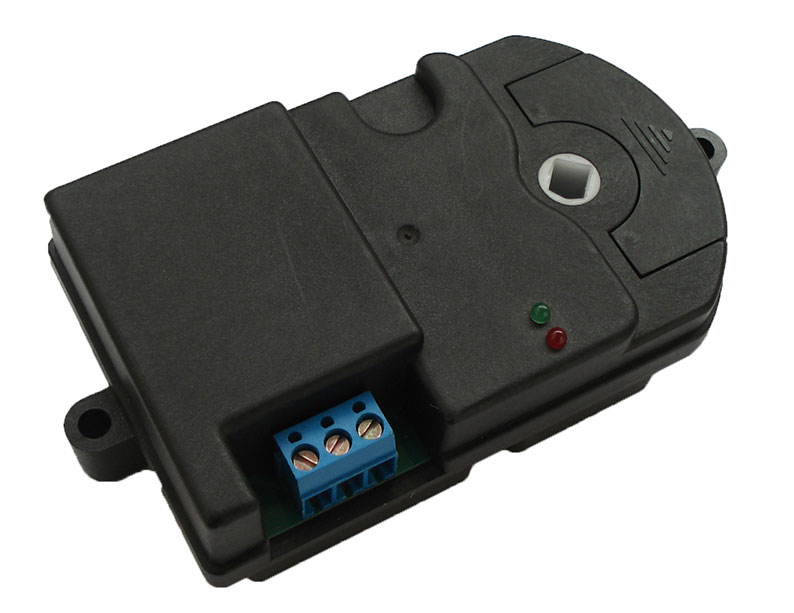

KD20 Non-spring Return Damper Actuator
• Power supply: 12 VDC
• Power consumption: 2 W
• Angle of rotation: typical 90 degrees, adjustable
• Torque: 0.4 N.m (60 oz.in), both open and close
• Speed: 4s to 8s for 90 degrees
• Connecting: direct coupling, 5.6 mm square shaft
• Control: on/off or floating
• Indicator: two LEDS for on/off status
• Connector: terminal block
• Life: 100K cycles

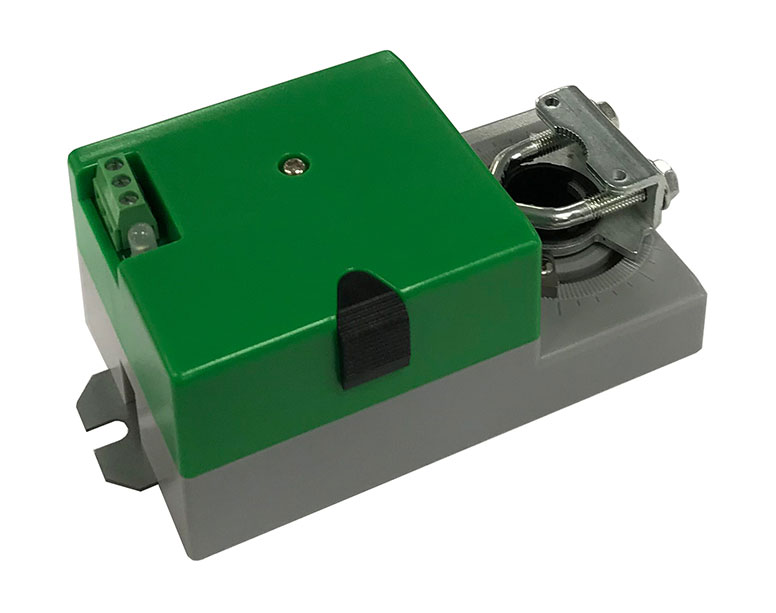

KD30 Non-spring Return Damper Actuator
• Power supply: 24 VDC or 24 VAC
• Power consumption: 2 W
• Angle of rotation: 95 degrees Max., adjustable
• Torque: 1.5 N.m (13 oz.in), both open and close
• Speed: 30s to 40s for 95 degrees
• Connecting: 6 - 16 mm round shaft
• Control: on/off or floating
• Indicator: Bi-color LEDS for on/off status
• Connector: terminal block
• Life: 100K cycles
