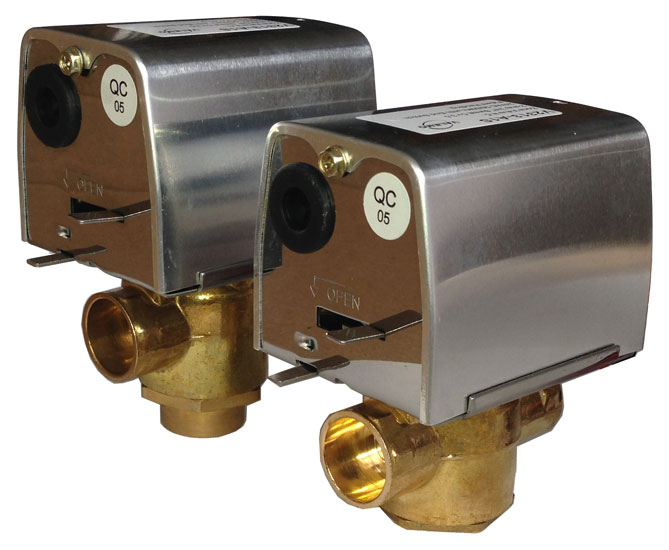

KZ series Zone Valve
• Power supply: 24 VAC, 115 VAC and 230 VAC
• Power consumption: 6 W
• Valve type: 2-way, 3-way
• Connection: Sweat, NPT, 1/2", 3/4", 1" and 1-1/4"
• Body: forged brass
• Static pressure rating: 300 psi
• Medium: water and glycol (up to 50%)
• Close off pressure: 20 - 50 psi
• Cv rating: 2.5 - 7.5
• Housing: stainless steel base with Al cover

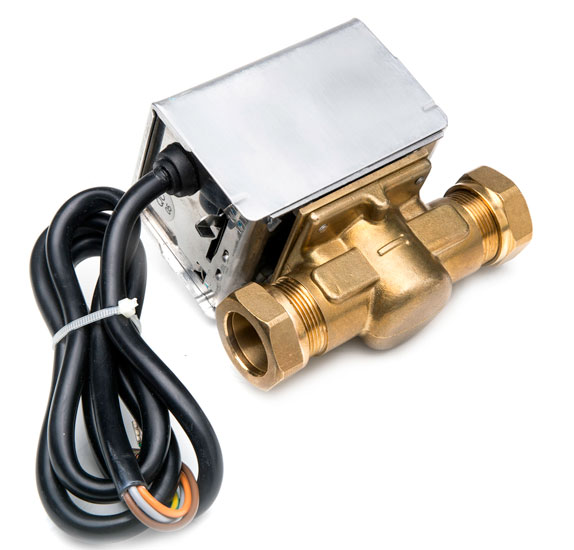

KZH223 Zone Valve
• Power supply: 230 VAC, 50 Hz
• Power consumption: 6 W
• End switch: 2.2 Amps, SPST
• Wire Leads: 1 m flying leads
• Static pressure rating: 8.6 bar max.
• Ambient temperature range: 5 to 50 °C
• Media temperature range: 5 to 88 °C
• Kv rating: 6.9
• Max differential pressure: 0.55 bar
• Connection: 22 mm compression
